Van Steel designed; the Front Coil Over System is the ultimate in 63-82 front suspension upgrades. A true BOLT-IN System, this package provides adjustable ride height, adjustable QA1 shocks, Moog ball joints and lower bump stops. The light weight yet strong control arms are constructed with 4130 Chromoly tubing, tig welded, jig fit and finished in a black powder coat finish. 6 degrees of positive caster is built into the upper control arms which improves handling with better initial turn-in and improved high speed stability.

A vast selection of Hyperco or Landrum Performance springs can be tailored to your exact needs. Delrin PTFE bushings and special cross shafts are included in the package. Our rear coilover trailing arms gives your corvette true independent suspension. Eliminate the rear transverse leaf spring and get a more precise spring rate for better ride and handling. This kit is the near ultimate in suspension tuning for 63-82 Corvettes for the street or track.

  • Front is a True Bolt-In
  • Fully Adjustable
  • Powder Coat Finish
  • Better ride & handling
  • Modernize your Vette’s chassis
For Vettes that already have wider fender flares installed, we recommend measuring your frame to ground behind the front tires where the frame is most parallel to the ground and measure to center of fender to ground. Our system allows for a factory frame to be around 7" from the ground and the factory flare on a C3 Corvette to be around 26.5" from ground (pending body shims) which is 1.5" lower than factory. Working on numbers for C2 Corvettes with factory flat fenders. Give us a call with questions for your flare fender options.






AR-07UM

1963 - 1982
Tubular Upper A-Arms

$859.99 pair







CO-C3-FS

1963 - 1982
63-82 Tubular A-Arms W/Single Adjustable Coilovers

$3,199.99 4 pcs







CO-C3-FD

1963 - 1982

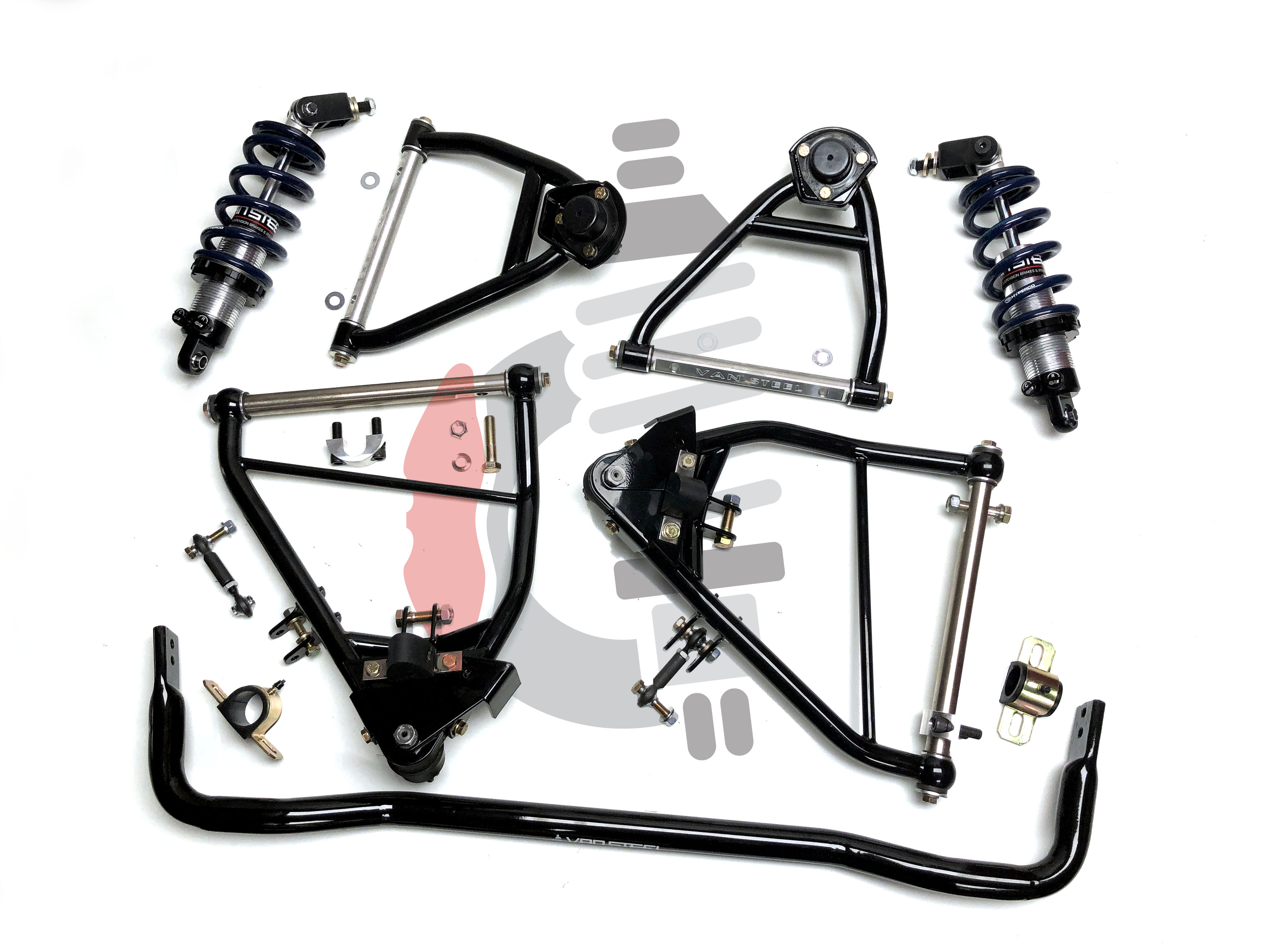

63-82 Tubular A-Arms W/Double Adj. Coilovers

$3,699.99 4 pcs







CO-C3-FS

1963 - 1982
Front Coilover Arms ONLY w/1.125 Swaybar (no shocks)

$2,499.99 4 pcs







CO-TW

1963 - 1982
Coilover Thrust Washers

$29.99 pair







SW-02

1963 - 2019
Single Spanner Wrenches

$14.99 each







CO-R-79

1963 - 1982
Springs (pr)

$189.99 pair







SW-01

1963 - 2019
Standard Spanner Wrenches

$21.99 each
