Drop Spindle Kit 2 Piece GT Rotors

1963-82 Drop Spindles with 2 Piece Slotted Rotors

• 1.5" Drop

• Increased Roll Center for Less Body Roll

• Spindles and Caliper Mounting Brackets Made of 6061-T6

• American Made

• Spindles and CMB's are Black Anodized

• Wilwood 6 Piston Calipers

• Wilwood 2 Piece 13.06" Slotted Rotors

• C7 SKF X-Tracker Hubs

• ARP Racing Studs

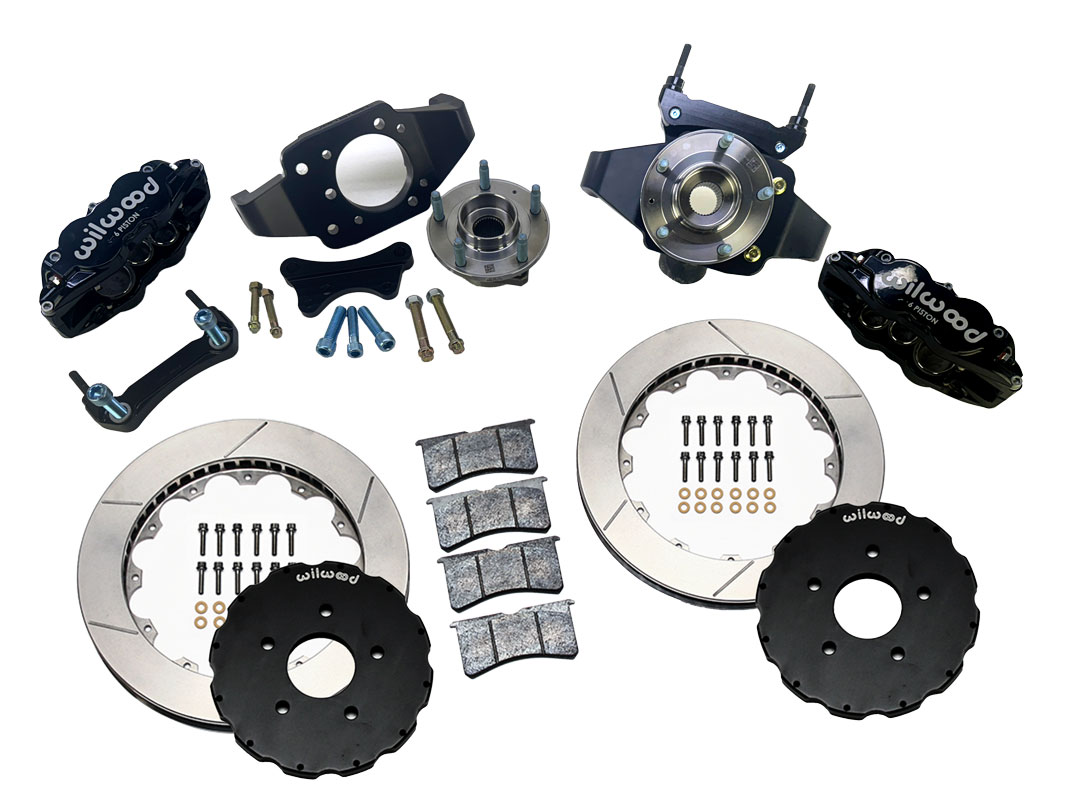

This bolt-on kit comes complete with all necessary parts to convert to a big brake and lower the front end of your Corvette at the same time. Our American made billet aluminum drop spindles are equipped with C7 rear hubs. We chose the C7 hub as it's the most economically priced SKF X-Tracker hub (vs C5/6) and can potentially be used with aftermarket ABS systems. The drop spindles are black anodized and are taller then factory increasing roll center for less body roll. The spindles are designed to bolt up to factory ball joints. Your choice of 6 Piston Wilwood Calipers in Anodized Grey, Black or Red and 2 piece slotted front rotors. Wilwood BP-20 Brake pads and Stainless Steel Flex Lines are included.

NOTE: M12-1.5x2.5" Lug studs are used in this kit. You MUST convert to M12-1.5 lug nuts. Min 17" wheel is required.
