Why Your New C3 Corvette Trailing Arms Still Feel Loose

Investing in new trailing arms for a 1963–1982 Corvette is a major milestone in any restoration. However, it can be incredibly frustrating to bolt everything up only to find that the rear wheels still have noticeable "play."

If you are experiencing movement when shaking the wheel, the trailing arm itself may not be the culprit. On the C2 and C3 independent rear suspension (IRS) setups, diagnosing play requires a systematic approach.

Diagnosing the Movement

To identify where the failure is occurring, you must check for play in two distinct directions. Jack up the car, secure it on stands, and grab the tire firmly.

1. Checking 3 and 9 O’Clock (Horizontal Play)

If you can wiggle the tire from left to right (holding it at the sides), you are likely looking at two specific areas:

• Wheel Bearings: This is the most common cause. Even with new arms, if the rear spindles weren't shimmed to the tight tolerances required, GM called for .002" to .008" of endplay (but we are much tighter tolerances), you will feel it here.

• Trailing Arm Nose Bushing: Check the front of the arm where it attaches to the frame. If that bushing is degraded or the bolt is loose, the entire arm will pivot horizontally.

2. Checking 12 and 6 O’Clock (Vertical Play)

Vertical movement is where many owners get confused. Some play here is normal, but it must be within spec.

• The Inner Axle Movement: In the C2/C3 Corvette design, the side yokes (inner axles) slide into the differential. They are held by C-clips, but they inherently move in and out. The below image shows upgraded 30 spline axles.

•

• The Tolerance: You will almost always see at least .020" of movement. However, the maximum allowable limit is .125" (1/8th of an inch). If it exceeds this, your side yokes are most likely worn down and need to be replaced. Worn clutch packs will also add to the excessive play.

• Strut Rod Bushings: If you have excessive 12 and 6 play, look at the strut rods—the bars connecting the bottom of the spindle support to the differential bracket. If these bushings are rotted or the "cam bolts" are slipping, the bottom of the tire will kick out, creating a dangerous handling characteristic. There is also a reducing washer that must be between the bushing and the bracket reducing the inner sleeve from 5/8" to the 1/2" cam bolt (Van Steel HD rod end versions do not use these reducing washers).

Quick Diagnostic Checklist

Why "New" Doesn't Always Mean "Perfect"

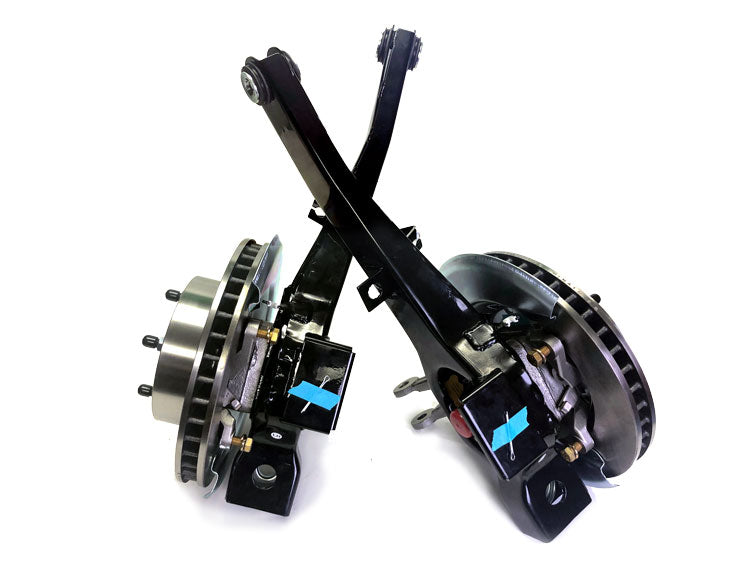

Many enthusiasts buy "loaded" trailing arms. While the arm itself is new, the play often stems from the Rear Spindle Setup. Setting up Corvette rear bearings requires specialized tools (like a setup tool and a dial indicator) and significant experience. If the endplay wasn't set correctly during the assembly of your new arms, the 3 and 9 o'clock play will be immediate. Van Steel bearing assemblies are setup with a very tight tollerances so therefore we offer a lifetime warranty on the bearings.

Final Pro-Tip:

When searching for parts to fix this issue, use specific terms like "C3 Corvette side yoke end play" or "Van Steel rear bearing assembly." If you've confirmed that your bearings and bushings are tight but the car still feels "darty," check your rear toe alignment, as even a tiny amount of movement at the trailing arm nose can radically change your alignment under load. Rear toe alignment and having the left hand and right hand sides as equal as possible is critical in high speed and cornering stability. Autocross and track setups should run double (or more) rear toe-in than the factory spec.
