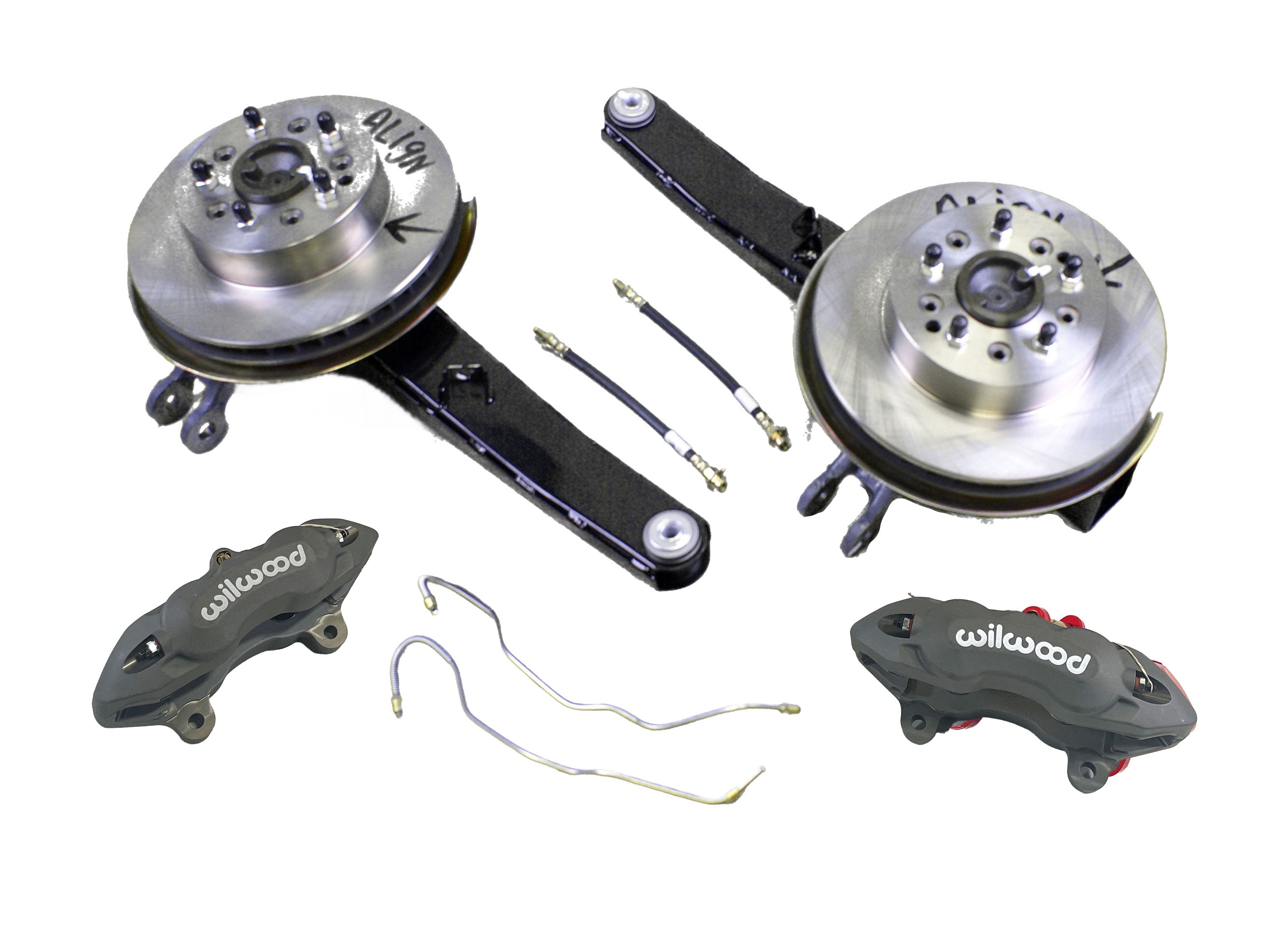

1963-64 Rear Disc Brake Conversion Kit

• New Factory Style Trailing Arm Assemblies
• Wilwood Calipers w/Pads and Hoses
• Brake Pads

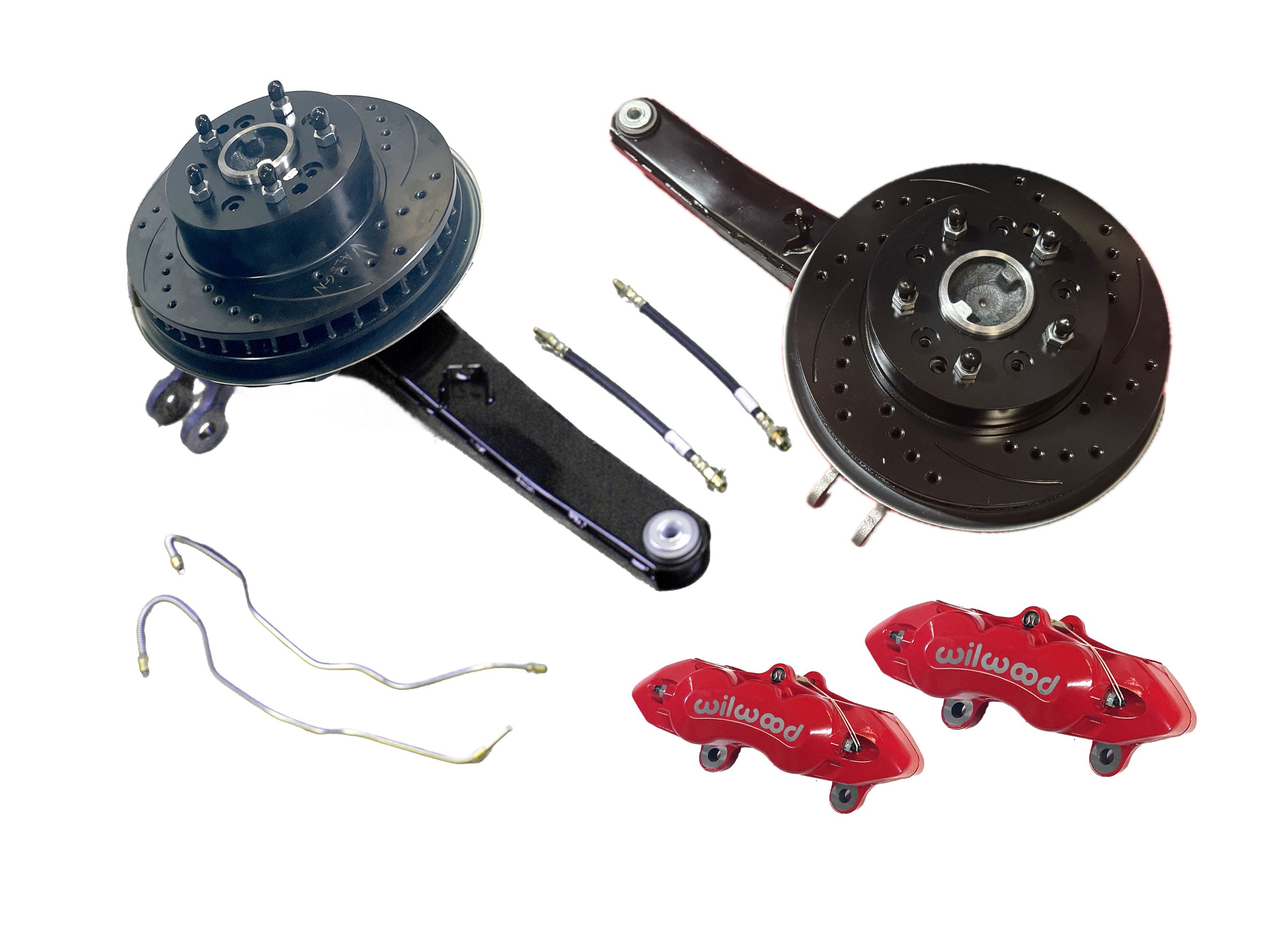

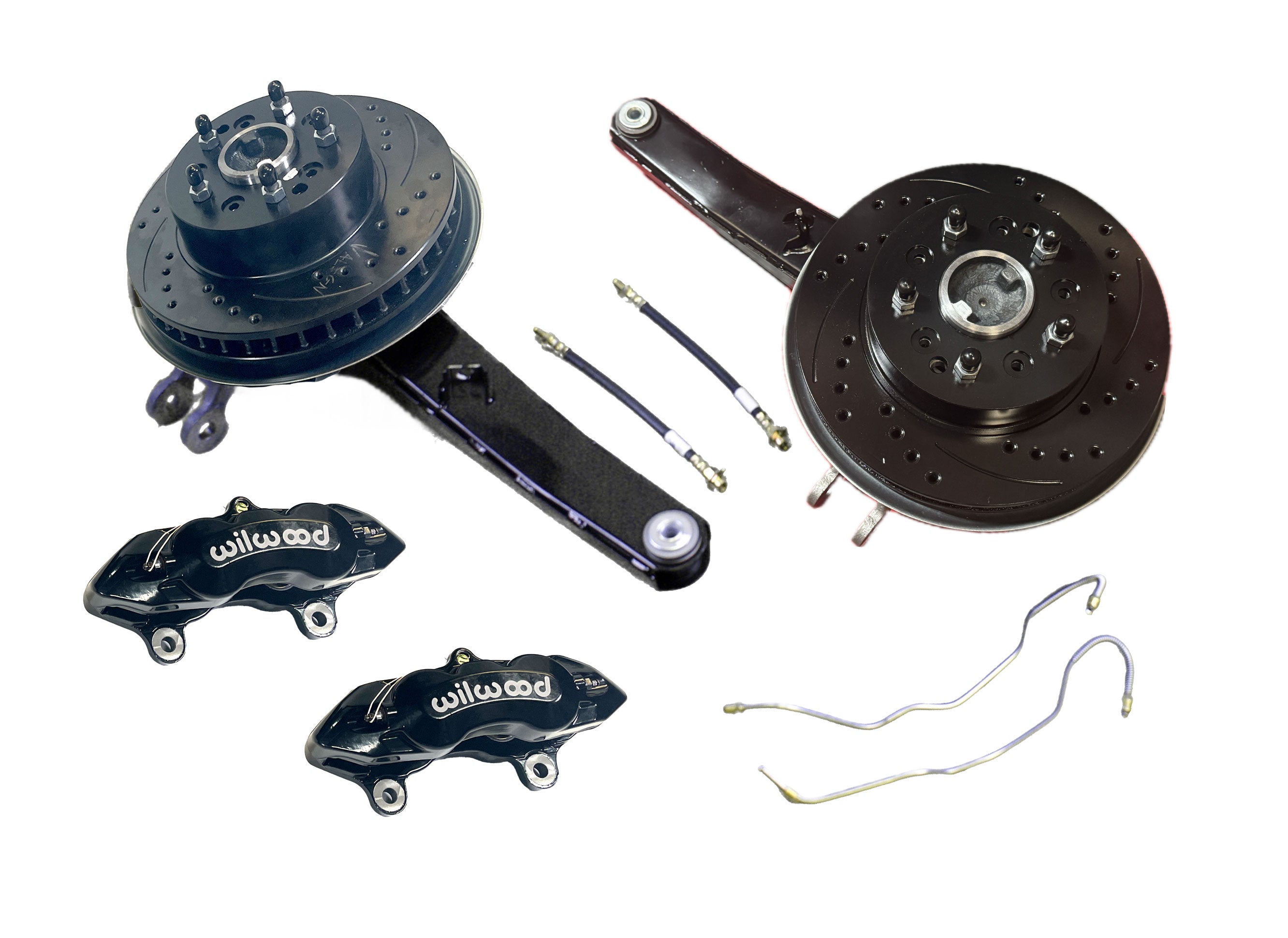

For our rear disc brake conversions, we use 1965-82 disc brake trailing arms. These trailing arms are completely assembled and ready to bolt-on, just make adjustments to the parking brakes. Our kit is coupled with Wilwood D8 4 piston calipers with 3 color options to choose from. Red or Black caliper options are equipped with a slotted and drilled rotor. Black rotors may be shown ONLY as a reference. Due to availability, slotted and drilled rotors may be black or gray.

Important Notes

1. Aftermarket knock off wheels may not fit. We highly recommend 67' rally wheels for caliper clearance.
2. You MUST cut the rear bump stop tabs flush with the side of the frame rail and relocate the rubber bumper inboard. Failure to do so will result in parts failing. On compression the bump stop will hit the caliper and can cause the caliper mounting bracket to brake.

Recommendation:

1963 Corvette; Use PN PB-63C for Parking Brake Cables

1964 Corvettes; Use PN PB-64 for Parking Brake Cables

Rear Alignment Shim Kit TA-23S
