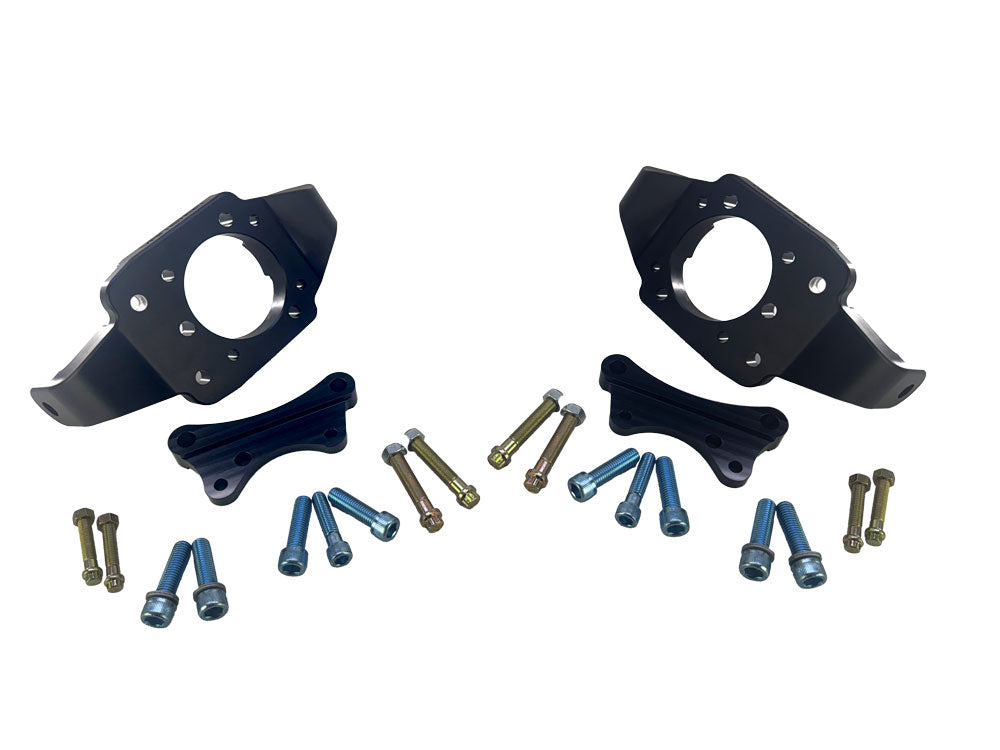

1963-82 1.5" Drop Spindle for Big Brakes - DIY Kit

• 1.5" Drop
• Increased Roll Center for Less Body Roll
• Spindles & Caliper Mounting Brackets are Made of 6061-T6
• American Made
• Spindles and CMB's are Black Anodized
• For C5/6/7 Hubs
• Fasteners Supplied

This is a DIY kit. You need to provide your own hub bearings. Our billet aluminum (6061-T6) spindles are designed for C5/6/7 hubs and will bolt up to the factory ball joints. No need to change to another model brand control arm or ball joint.

Factory steering arms need to be transfered over from your original front wheel bearing assemblies. 1963-68 models will need to drill the 2 mounting holes out from 7/16" to 1/2".

Spindles are designed around a C5/6 Wilwood front brake kit w/SL6 calipers. Factory C5/6 base rotors will also work.

The wheel is spaced outboard approximately 1/16"(.0625).

NOTE: M12-1.5x2.5" Lug studs are used in this kit. You MUST convert to M12-1.5 lug nuts. Min 17" wheel required.
