1963-82 Trailing Arm Bushings

Our trailing arm bushing kits fit an array of trailing arms so please read carefully. and measure the diameter of the bushing hole in the trailing arm if you have offset trailing arms. Coilover trailing arms are built off of our offset trailing arms so they will use the same bushing. All kits do both trailing arm bushings.

Trailing Arm Bushing Hole ID (Inner Diameter)

• 1.125"
• 1.25"
• 1.39"
• 1.625"
• 1.75"

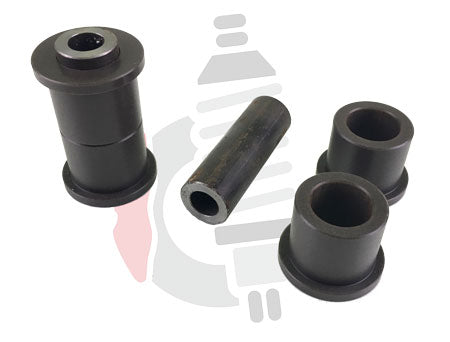

1.125" fits very early style offset trailing arms. These offsets would be "C" channel style and would have been sold in the 80's, 90's and very early 2000's. If the hole measures 1.125" Delrin Bushing are the only option available. PN TA-18-OK

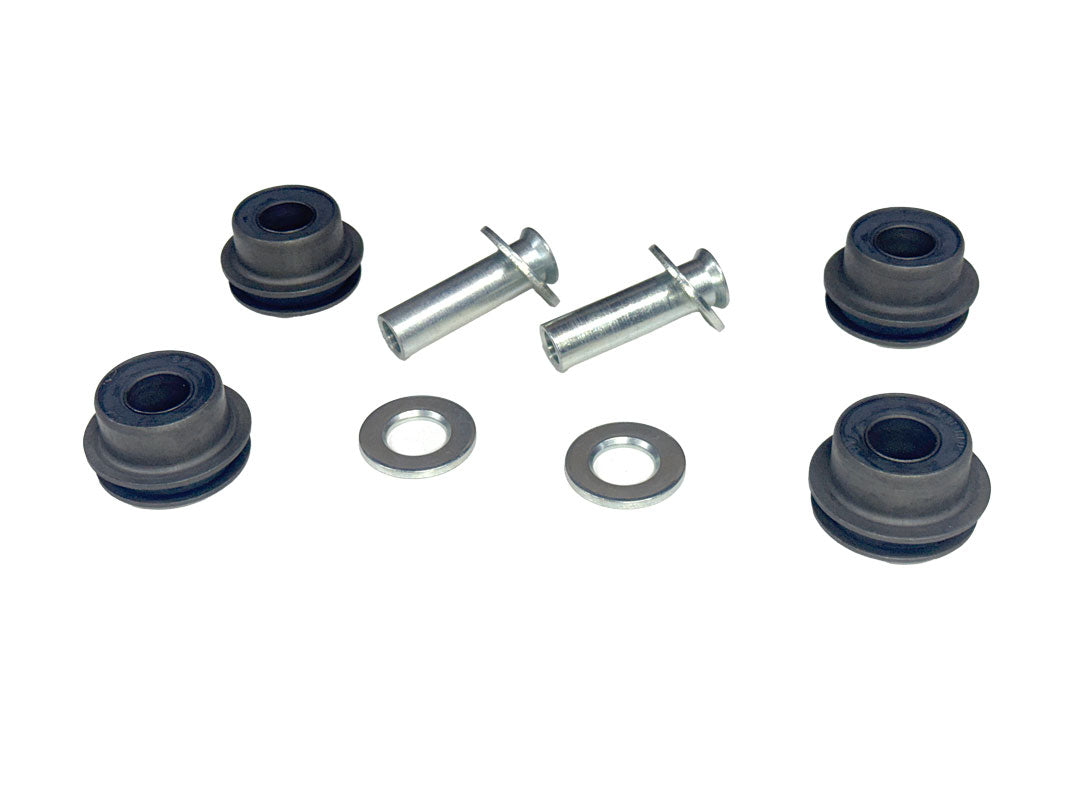

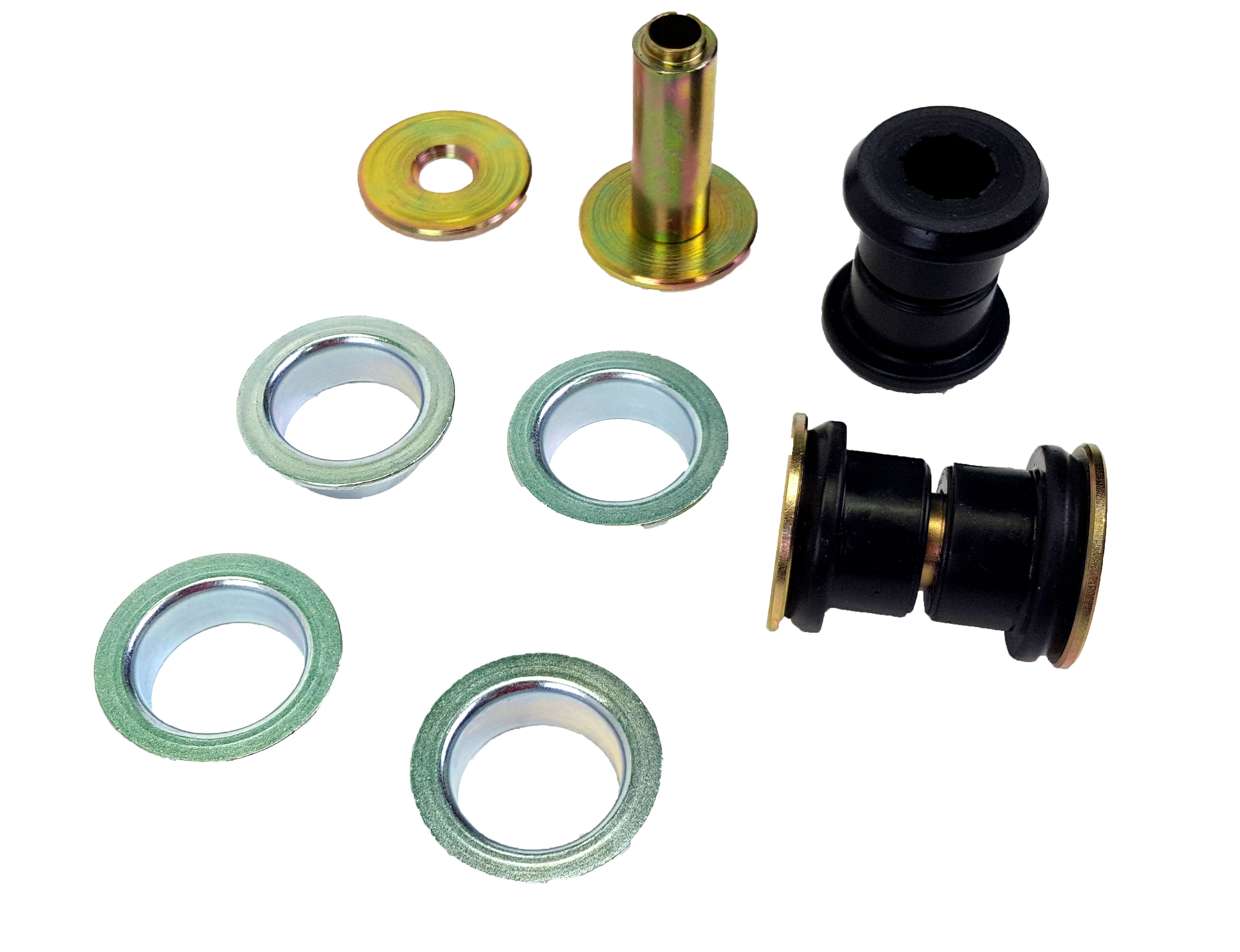

1.39" Rubber/Poly - Will fit all factory and offset trailing arms. Rubber will fit in some offsets but they are SUPER compressed and most likely will not last long. If the arms are offsets, the poly bushing would be inside a shell. PN TA-21K or TA-18PK

1.25" Poly - Will only fit offset trailing arms and will NOT need the shell that comes in the kits. PN TA-18PK.

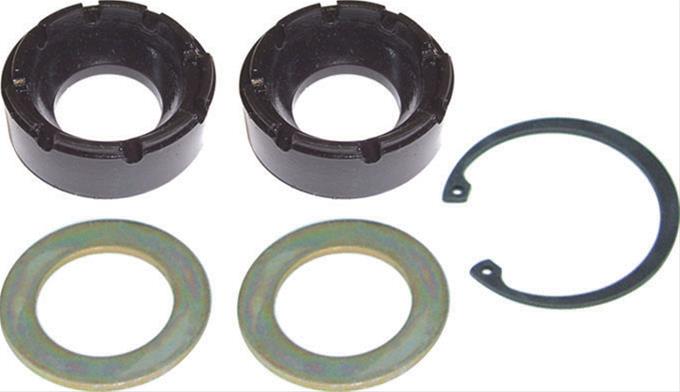

1.625" - Johnny Joint. 2 Bushing halves with a ball socket. Snap ring holds it in place.

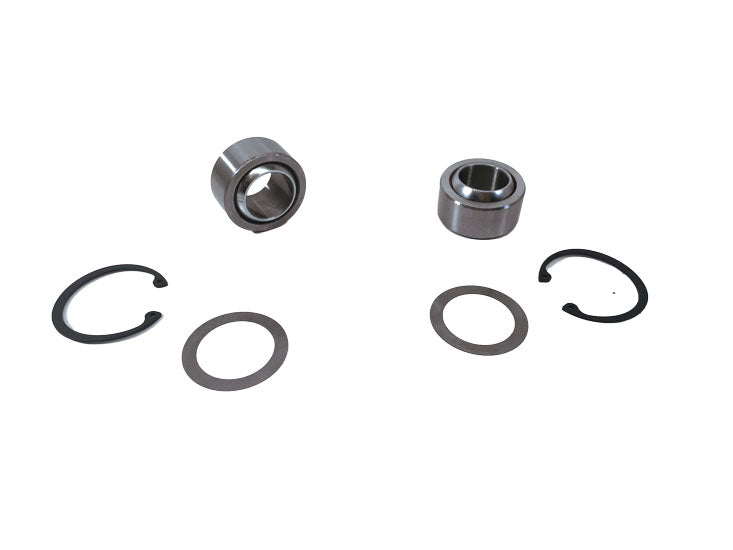

1.75" - Spherical Bearing. Fits all cast offset and coilover trailing arms. Has aluminum inserts to reduce the ID of the bearing to the OD (7/16) of the bolt.
