1963-82 Rear Trailing Arm Frame Mount

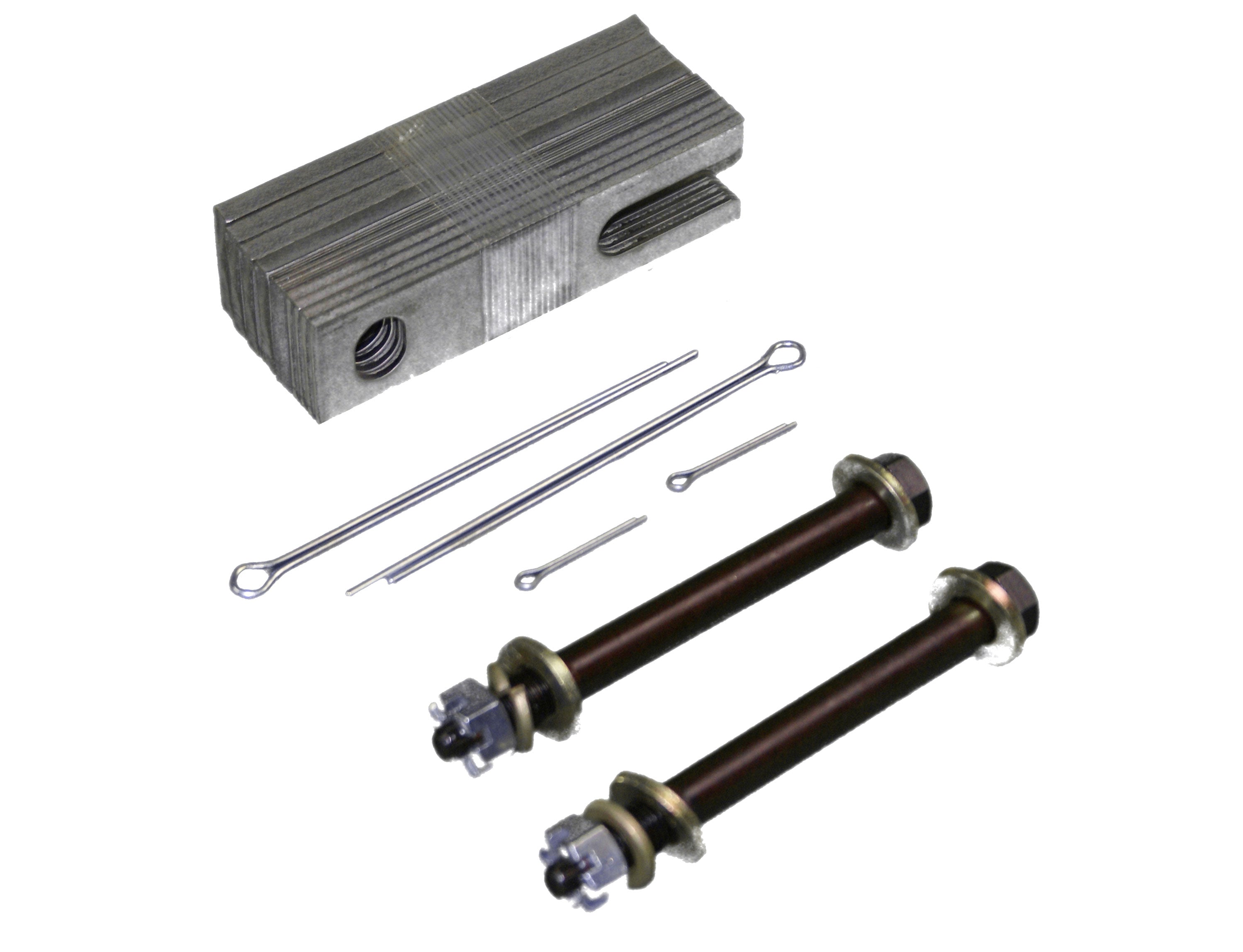

Choose from single bolt for one side, two bolts for both sides or complete bolt and shim kit.

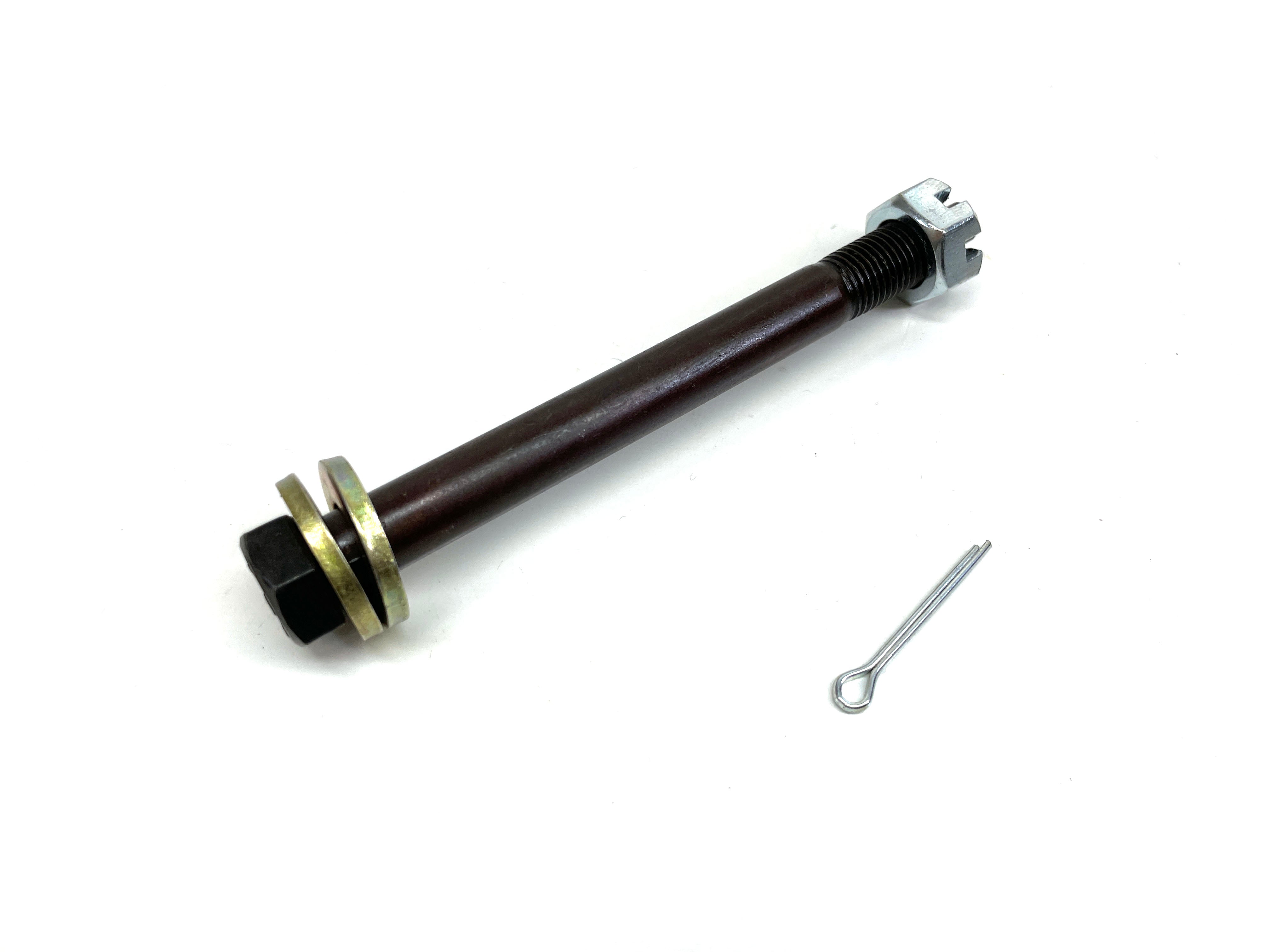

• 7/16 hardened bolt
• 2 thick washers w/lock washer
• castle nut and cotter pin
• shims are stainless steel and fit 63-82 (63-69 must drill frame for cotter pin)

 This is for a pair of front trailing arm bolts. Also referred to as pivot bolts or alignment bolts. These are the same as factory with a cotter pin hole and starter threads.

People often ask for torque spec of this bolt and there actually isn’t one. The frame pocket needs to be stuffed with as many shims as possible. If not, the frame pocket will start to collapse as the installer keeps trying to tighten the nut until it’s snug.
