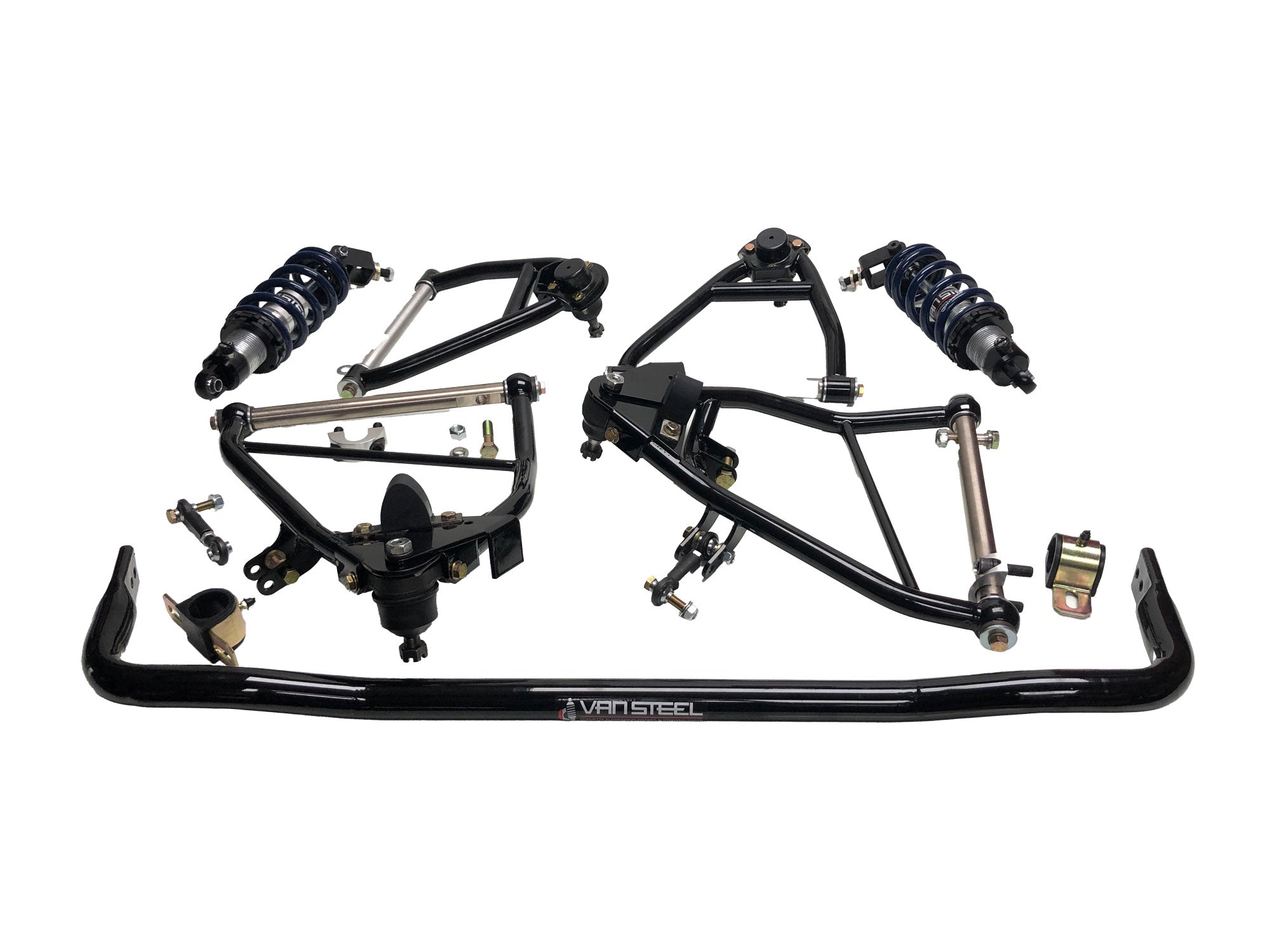

63-82 Front Coilover Kit with QA1 Shocks

SKU: CO-C3-FS1
In stock
Usually ships within 24 hours
$3,499.99
Options

Got questions?
Feel free to get in touch

Van Steel designed; the Front Coil Over System is the ultimate in 63-82 front suspension upgrades. A true BOLT-IN System, this package provides adjustable ride height, adjustable QA1 shocks, Moog ball joints and lower bump stops. The light weight yet strong control arms are constructed with 4130 Chromoly tubing, tig welded, jig fit and finished in a black powder coat finish. 6 degrees of positive caster is built into the upper control arms which improves handling with better initial turn-in and improved high speed stability.

A vast selection of Hyperco or Landrum Performance springs can be tailored to your exact needs. Delrin PTFE bushings and special cross shafts are included in the package. Our rear coilover trailing arms gives your corvette true independent suspension. Eliminate the rear transverse leaf spring and get a more precise spring rate for better ride and handling. This kit is the near ultimate in suspension tuning for 63-82 Corvettes for the street or track.

  • Front is a True Bolt-In
  • Fully Adjustable
  • Powder Coat Finish
  • Better ride & handling
  • Modernize your Vette’s chassis
For Vettes that already have wider fender flares installed, we recommend measuring your frame to ground behind the front tires where the frame is most parallel to the ground and measure to center of fender to ground. Our system allows for a factory frame to be around 7" from the ground and the factory flare on a C3 Corvette to be around 26.5" from ground (pending body shims) which is 1.5" lower than factory. Working on numbers for C2 Corvettes with factory flat fenders. Give us a call with questions for your flare fender options.

Enhance ride and handling with a complete front coil-over kit. Easy to install, and no-modifications needed to your frame or factory components.

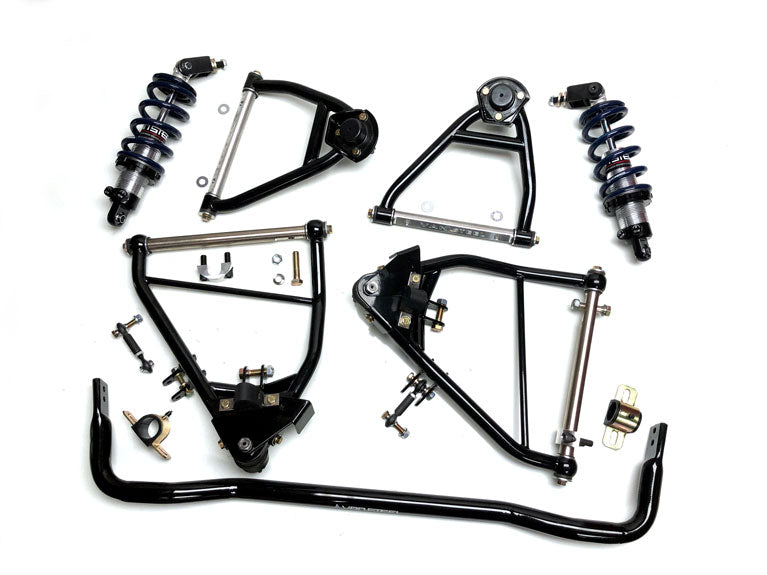

  • 450# Springs (FS1 - Small Block)
  • 550# Springs (FS2 - Big Block)
  • 4 Light Weight Tubular A-Arms
  • 2 QA1 Single or Double Adjustable Coilovers Shocks
  • 2 Upper Shock Mounting Brackets
  • Spanner Wrenches
  • Complete With Moog Ball Joints
  • Bolts on like factory control arms. No modifications to frame necessary.
  • Easily adjust ride-height and/or corner weigh your Corvette.
  • Front 1 1/8" sway bar with heim end links

Front Coilover Instructions
